ELING Kus 52mm (2'') Fuel Level Tank Gauge 0-190ohm Signal for Marine Boat RV UTV with Red and Yellow Backlight 12V 24V Fuel Level Sending Unit 175mm Long

Fuel Level Gauge Product Features: -Be suitable for all kinds of fuel level sensors with same signal, and display oil level of fuel tank-Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration. -Operating temperature: -40°C ~+85°C -Protection rank : IP67. Technical Data: -Fixing dimension: 52mm(2") -Indicating Range:E-1/2-F -Signal: 0-190ohm-Working Voltage: 12V/24V -Choice between red and yellow backlight -Operation mode: LCD display, stepper motor -Protection grade is IP67, the whole body is completely waterproof; -Excellent anti-fogging function; -316 Stainless steel bezel with curved glass; -Convenient Installation by multi-plug socket connecting way; Package Includes: 1x Fuel Level Gauge 1x Multi-plug socket 1x Installation Instruction Level Sender Product Features: - Suitable for truck, generators/genset, bus and marine field -Widely used in fuel, water, kerosene and chemical tanks -OEM quality, widely used on automotive and marine OEMs -Reed switch, steady output signal -Simple and strong structure , Advanced corrosion resistance -Long using life, anti-vibration,anti-explosion -High quality fuel and water level sensor -Economical level sensing solution, long service lifespan -Without limitation of environment,length can be customized Product Specifications: -Material: SUS316 stainless steel -Length range: 175mm -Assembly: SAE standard 5 holes -Mounting: 5 pieces of M5 screws and 2 mm thick gasket -Rated current for alarm switch: 500mA -Output signal: 0-190ohm -Resolution range: 21mm -Operating temperatures: - 40 to 85°C -Protection rank: IP67Package Includes: 1x Level Sensor 1x Gasket 5x M5 Screws

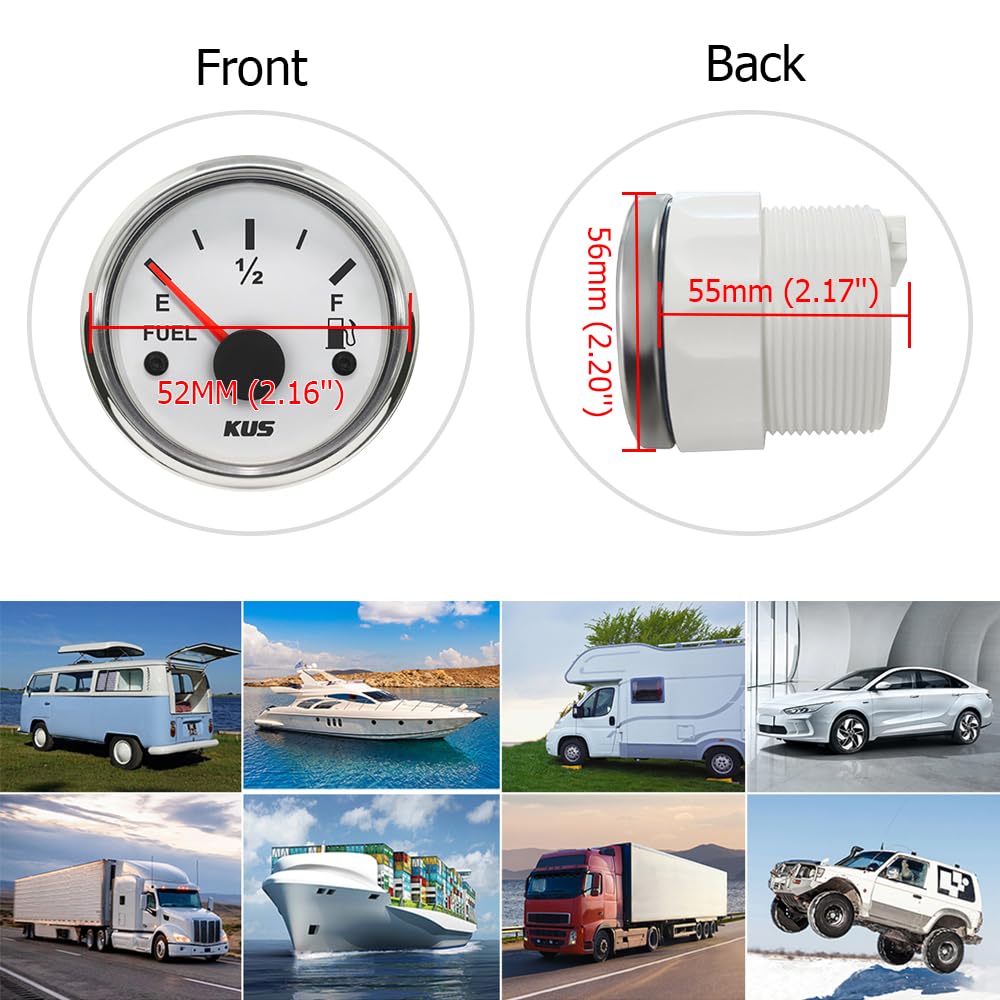

• Fuel Level Gauge-Installation Dimension: 52mm(2"), Level Sender Signal: 0-190ohm.
• Fuel Level Gauge-Indicating range: E-1/2-F, Level Sender Length: 175mm.
• Fuel Level Gauge-Working Voltage: 9-32V(12V/24V), Level Sender Assembly: SAE standard 5 holes.
• Fuel Level Gauge-Backlight: Red and Yellow available, Level Sender Resolution: 21mm.
• Level Sender Material: Stainless Steel. Fuel Level Gauge installation: Cut an 52mm (2 1/16") hole in the panel and allow a clearance of 55mm (2 3/16”) behind the panel to fit the gauge. Put the gauge in the hole and screw down.
